Home Lighting GAVITA Gavita Pro 1000 DE Classic Set

Gavita Pro 1000 DE Classic Set

  • Code:
    2702
  • Weight:
    0.000 Kgs
  • Input Voltage: 230 - 240 Volt
  • Input Current at 100%: 4.5 - 4.7 Amps
  • Input Current at 115%: 5.8 Amps
  • Input Power at 100%: 1055 Watt
  • Input Power at 115%: 1200 Watt
  • Lamp: Gavita Pro Plus 1000 W EL DE HPS E40
Add to wishlist

/userfiles/editor/file/Gavita-Proline-1000-de-brochure-EU-EN%5B1%5D.pdf

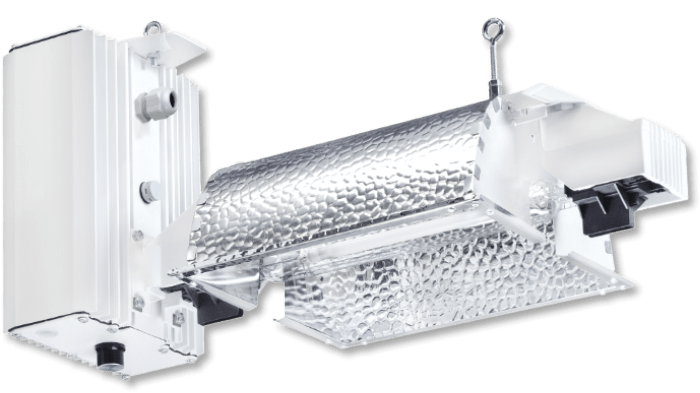

The original Gavita fixture that started the revolution in double ended lamp technology.
The  fixture comprises of a ballast, reflector and lamp in one complete compact package. Made according to horticultural standards, the housing of the ballast is sealed and contains a gore-tex® plug to ventilate the housing, while keeping dust and humidity out


Ballast output is controlled by an external switch, allowing it to be adjusted to 600, 750, 825, 1000 W, and 1150W boosted output. The high frequency ballast was specifically designed for the Gavita double ended HPS lamp, resulting in an accurate, optimal output, a stable burning lamp and a better light maintenance over time. The ballast is not suitable to run Metal Halide lamps.
The reflector is replaceable (we recommend to do this every year to two years) and there is a choice of replacement reflectors:
The HR96 DE for overlapping configurations, assuring optimal uniformity and penetration. This is the industry standard reflector delivered with the fixture.
The W 150 DE for wide configurations, where uniformity and lower light levels are required in large rooms. 150 degrees beam angle, for double ended lamps.
The M 110 DE SR for applications in single rows and small rooms, where a single reflector needs to create uniformity and high light levels.  110 degrees beam angle, for double ended lamps.

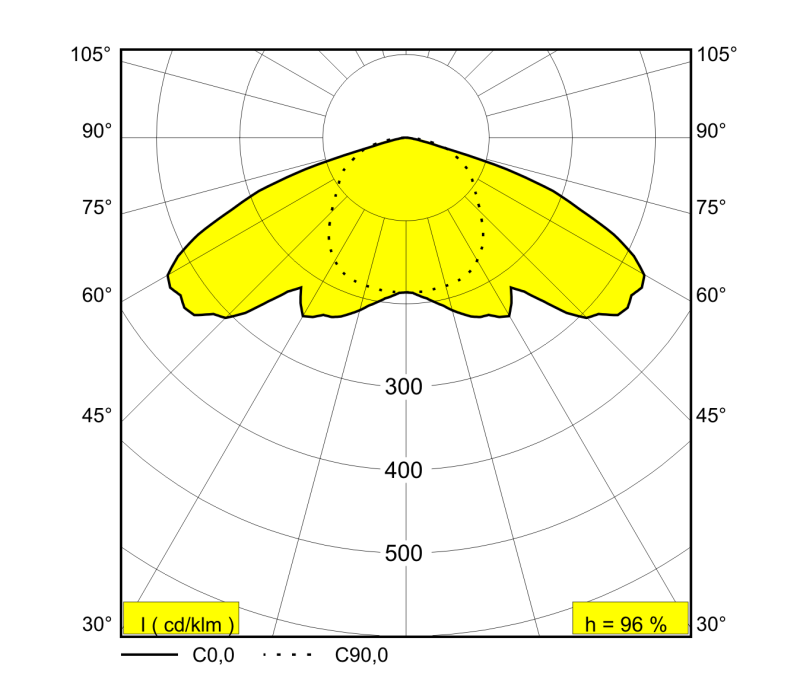

The spread of the Pro 1000 with HR96 DE reflector is about 4x6 ft (110x180cm) at 3 ft distance in overlapping plans, providing light levels of up to 1000 µmol s-1 m-2.
The fixture’s light source is a Gavita Pro Plus 1000W double ended HPS lamp, generating 2100 µmol s-1 of light. With a light maintenance of over 96% per 5000 hours you only need to replace it once a year.
Mounting is easy because the fixture is balanced and only requires two hanging points. For c-profile installations we have convenient brackets available.
